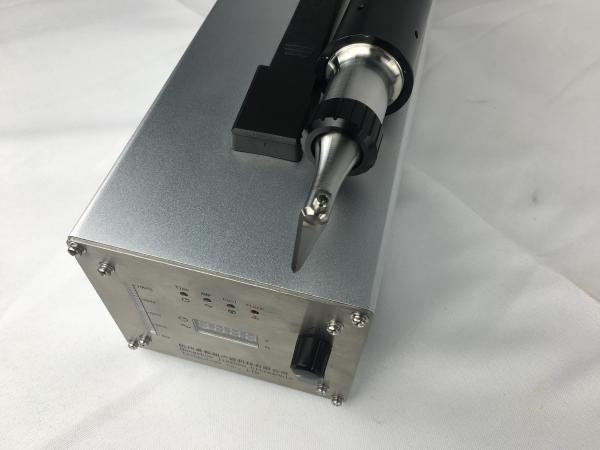

40Khz Ultrasonic Handheld Cutter Precision Cutting of Carbon Fiber and other Aerospace Materialsdge
Descripersion:
Ultrasonic Cutter are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery. Ultrasonic Cutters are small in size and do not require large installation areas. A wide selection of blades and cutting discs combined with our proprietary cutting systems makes Dukane the supplier of choice to many of the world's leading aerospace builders.
This Ultrasonic Cutter is designed compact and lightweight with an easy hand grip to reduce fatigue allowing for long continuous operation. This ideal NSK handpiece offers excellent maneuverability with no vibration to the hand ensuring an accurate and sharp cutting finish. The controller automatically adjusts the output power depending on the load so there is no need to make any adjustments on the controller during the working process. A constant frequency provides steady cutting results. From simple work to fine cutting and complicated shapes, this Ultrasonic cutting Knife performs effortlessly and beautifully.
Parameter:
| Item |
30Khz cutter |
40Khz cutter |
| Frequency |
30khz |
40khz |
| Power |
300w |
200w |
| Amplitude |
10-60μm |
10~50μm |
| Blade tips thickness |
1mm |
0.6mm |
| Horn |
Rapid steel |
Rapid steel |
| Cutting thickness |
0.1~10mm |
0.1~8mm |
| Suitable material |
Carbon fiber, Nomex, honey combs, Prepreg materials,Rubber,Thermoplastics,Leather,Cloth Non woven, fabric, Paper Plastic sheet etc., |
Target Materials
Resin plate
Glass fiber (GFRP)
Formed decorative film
Foam
Blow-molded parts
Injection-molded parts
Carbon fiber (CFRP)
Aluminum foil composites
Non-woven fabrics
Controlled-depth kiss cutting
Advantages:
The main use is cutting with the added value is the weld.
In the case of simple tissues get a clean cut that does not produce waste and above all avoid the frayed of the fabric borders.
In the case of machines working with several layers of materials such as fabric, fiber and fabric, or two tissues, it is equally useful, as well as cutting two or three materials will be soldiers, greatly facilitating the process subsequent preparation, handling or transport.
This system is designed to suit a multitude of existing machines is their own production line, you can also install it on auxiliary modules sandwiched between machines … etc.
The court system allows fast, clean, no odor or fumes, no danger of creating a flame or fire, a high level of job security because with this system eliminates sharp metal blades.
FEATURES
1.Easy to use and operation
2.Small volume , take small space
3.Overload protect function , no damage to components
4.Switherland transducer , it’s stable and life long
5.Power range 30--100% adjutable
6.High quality titanium ultrasonic knife
7. With digital ultrasonic geneator .
